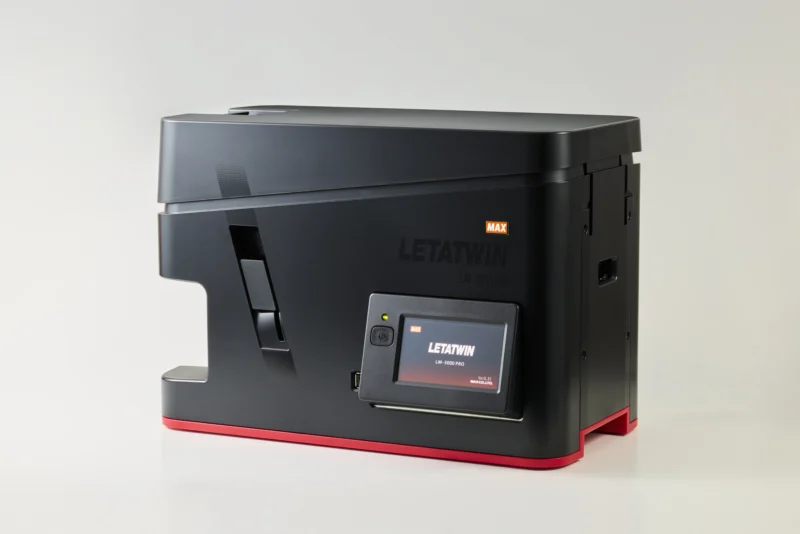

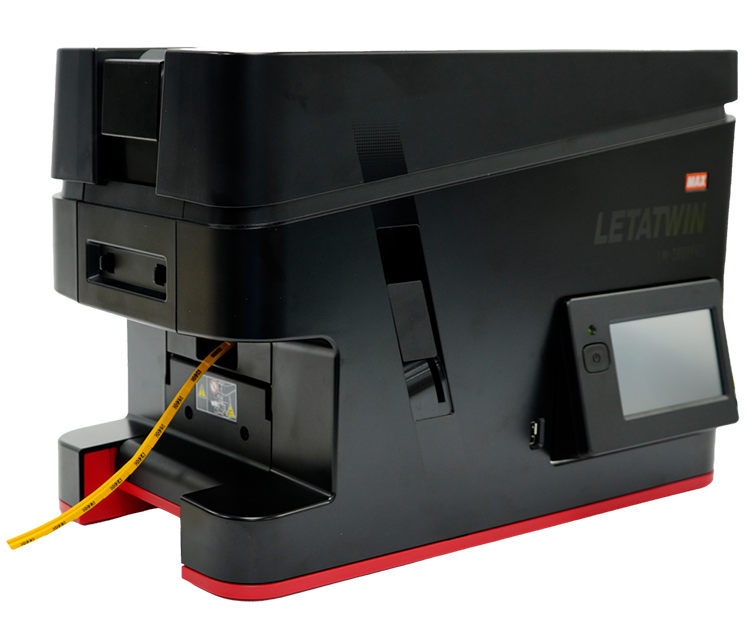

LM-3000PRO
Cable Marking Printer
Max LM-3000PRO cable marker provides an array of identification solutions for cable and control panel management. The LM-3000PRO has a cutter built in to allow bespoke sizes. This printer has been developed for speed and efficiency (twice the print speed of other Letatwin models), it offers a wide range of different consumables.
Overview
Introducing the LM-3000PRO: your comprehensive solution for cable and control panel management. This new Letatwin model is designed and developed to be one of the fastest, efficient and most cost-effective printers on the market with a wide range of consumables for control panel building and cable marking solutions.

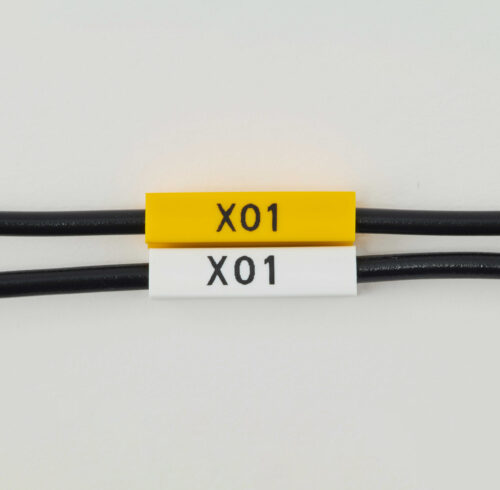

Our unique ‘Grip Sleeve’ is engineered for maximum efficiency. Three times faster than conventional heat shrink processes. Providing clear printed text for superior visibility and streamlined design that sits flush against terminal blocks.
The LM-3000PRO excels in a range of applications, including:

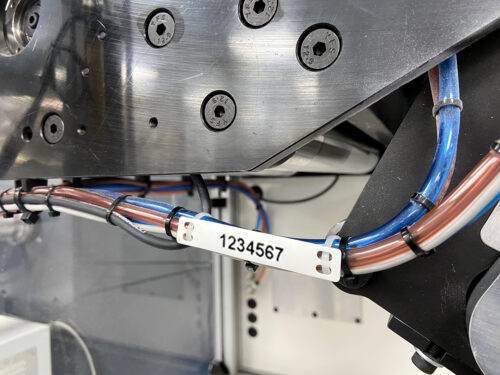

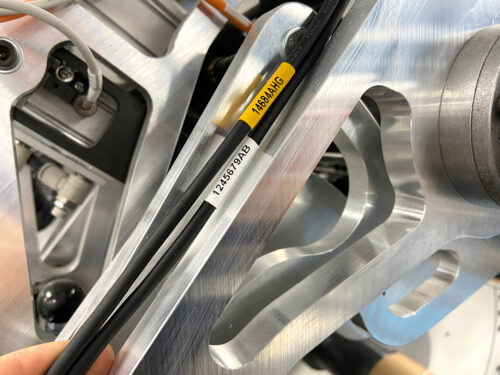

Cable Identification

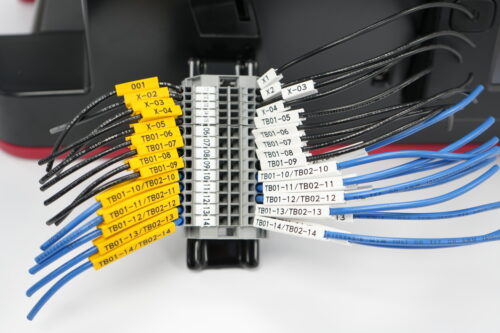

Terminal Block Marking
ID Labelling
Heat Shrink Application
Why purchase a LM-3000PRO?
Efficiency and Productivity: The LM-3000PRO has been designed to enhance efficiency and productivity. Its fast print speeds, and flexibility to create both single cable ID’s or batch printing with sequential numbering, allows professionals to streamline their labelling tasks.
Cost Savings: By having a LM-3000PRO printer, organisations can save costs associated with outsourcing their tubing needs. With the ability to create tubings in-house, there’s no need to pay premium prices for custom tubes or wait for external orders to be fulfilled. This cost-saving feature can be significant for businesses.

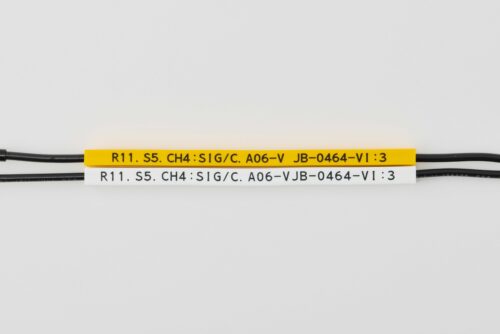

Double-sided print option: The LM-3000PRO offers optional double-sided printing, ensuring your cable markers are visible from any angle.

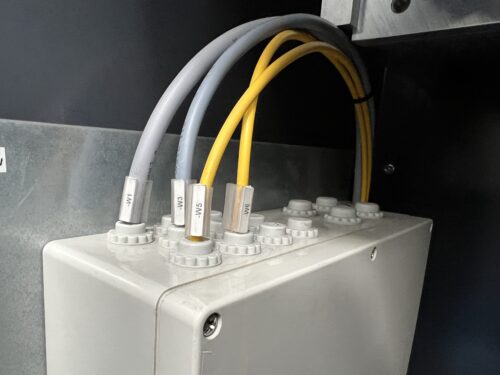

Durable and Professional Markings: The LM-3000PRO printer produces durable and professional-quality markers. This is essential for applications where markings must withstand harsh environments, such as industrial cable identification, panel boards and heat shrink tube for electrical components.
Consumable Variety: LM-3000PRO offers a range of consumables, including our patented Grip Sleeve, Grip Tube, Cable Tags, Conductor Markers, Heat Shrink, Terminal Block Slide plates, PVC tube and Self-Adhesive Tape.
How can we help you to get the most out of your LM-3000PRO?
Our comprehensive support package includes online training to ensure your teams’ proficiency.
- You can rely on us for responsive assistance via phone and email, backed by regular updates.
- Access a wealth of technical resources, from instructional videos to user guides and technical data—all conveniently downloadable from our website.

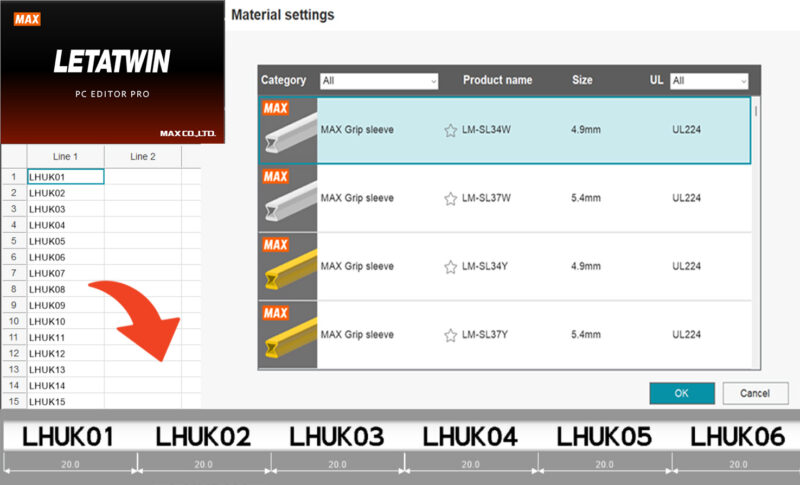

Included Software
Effortlessly connect to your PC via USB, wired LAN or wireless LAN for a time-saving data entry experience. Import your CSV file or simply copy and paste directly from Excel into the NEW LETATWIN PC EDITOR PRO. The new modern software allows users to easily set up sequential number and modify details of markers. This streamlined process ensures efficient data transfer, making your workflow smoother and more productive.

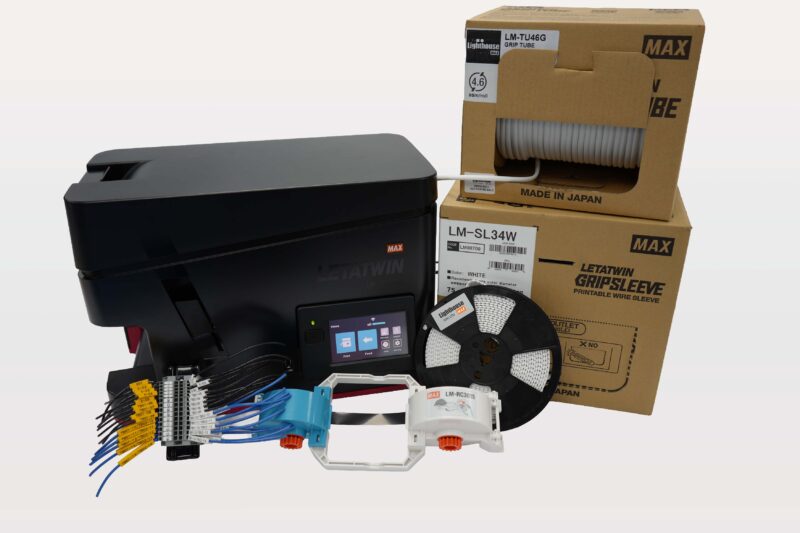

Consumables
Explore our extensive range of consumables, where you’ll find a variety of solutions tailored to your specific requirements. From grip sleeves and heat shrink materials to cable tags and ID plates, we’ve got you covered.

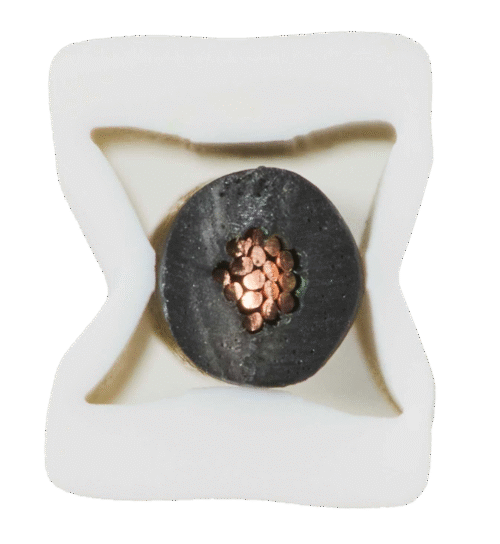

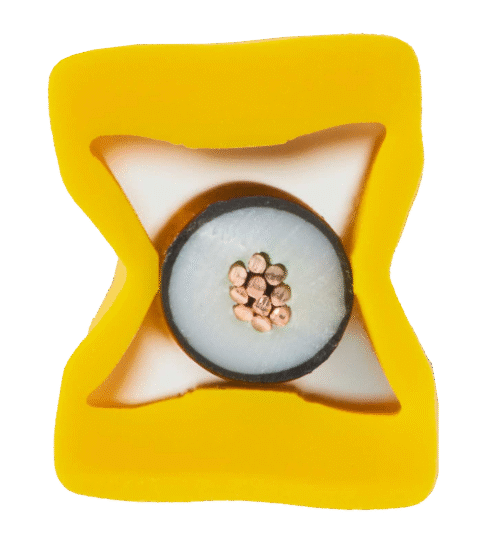

One standout in our selection is the new, unique ‘Grip Sleeve’. This ingeniously designed sleeve secures the wire at three points on the inner wall of the sleeve, preventing rotation and making it less likely to slip. The flat printing allows bigger, clearer text for better visibility. Three times faster than conventional heat shrink process.
Extras
Product Specifications
| Print Resolution | 300 DPI |
| Material Width | 36mm |
| Print Width | 19mm |
| Print Speed | 80mm per second |
| Print Technology | Thermal transfer |
| Cutting Function | Auto half cut, manual full cut |
| Maximum Output Range | Grip Sleeves: 100m, Tubes:100m, Tape: 5m, Marker Strips: 5m, Blocker Markers: 1,000, ID Plate: 20m |
| Supported OS | Windows 11 |
| Print Options | Double sided, Vertical / Reverse |
| Weight | 11 kg (excluding accessories and power cord) |
| Dimensions | 427 (W) x 256 (D) x 301 (H) mm |
| Connectivity | USB, wired LAN, wireless LAN (IEEE802.11.b/g/n)(n is 2.4GHz only) |
| Power Supply | AC100-240V 50/60Hz |

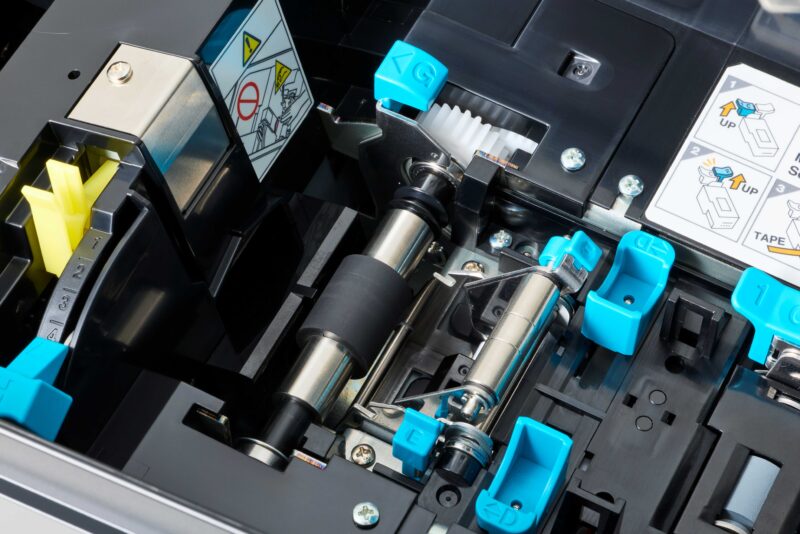

| What’s Included | Ink Ribbon (LM-IR3015B), Ink Ribbon Cassette, Reel Stand, Quick reference manual, Safety guidance, Platen rollers (3 types) (for LM-SL34, LM-SL37, and normal), Attachments (6 types) (for A2009-145 (for block markers), A2009-113/114/115/515/615, Ø1.5 to Ø2.0 tubes, Ø0.8 tubes, Ø10.0 tubes, and ID plates), Power Cable, USB Cables, Manual Guide, Software use license |
